M10 – STRAIGHT SLIDER

M10 – STRAIGHT SLIDER

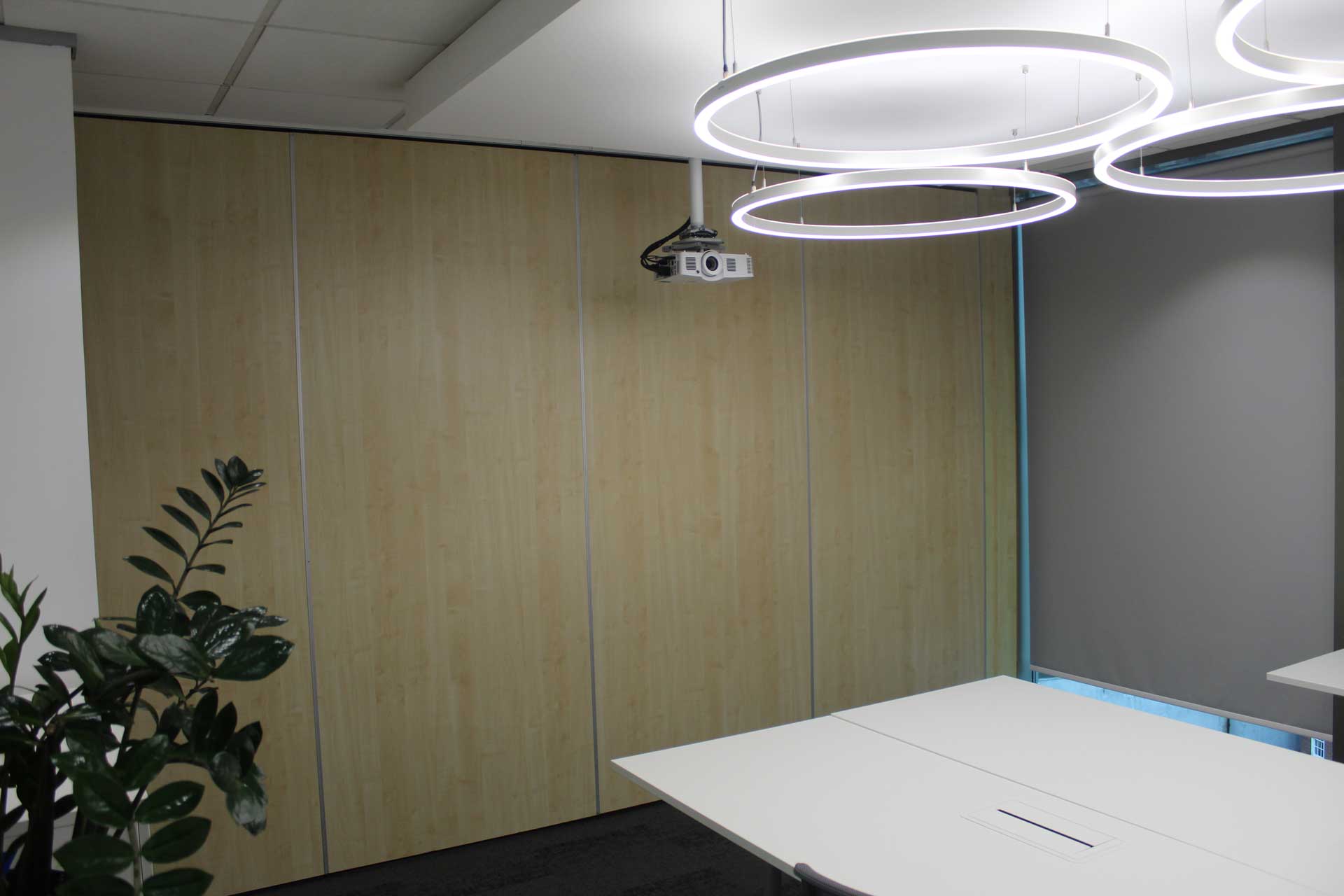

A simple push/ pull straight slider panel system, which can be supplied single wing stacking at one end only or bi parting allowing the panels to stack each side of the room and meet in the middle of the opening when the wall is closed.

This system is available in top hung without floor track, or floor supported with a low profile floor track.

This easy-to-use system is frequently used in commercial and domestic buildings where the panels can be moved into or alongside a recess.

Features:

  • Top hung or floor supported on low profile track options.
  • Brush seals at top and bottom to enhance acoustics.
  • Panel widths from 400-1200mm
  • Panels joined together to form larger openings (maximum 3 panels can be joined together)
  • Single wing or big parting stacking arrangements.
  • Panel finishes include vinyl, veneer, melamine laminate, a magnetic dry wipe enamelled writing
    surface or paint
  • Optional glazed modules or vision panels

Specifications:

  • Sound resistance: 25-45 Rw(dB) depending on construction
  • Wall heights: Up to 4000mm
  • Stack width: 140mm depending on construction
A simple push/ pull sliding panel system, which can be supplied single wing stacking at one end only or bi parting so that the panels stack each side of the room and meet in the middle of the opening when closed.

This system is available in top hung without floor track, or floor supported with a low profile floor track.

This system is frequently used in commercial and domestic buildings where the panels can be moved into or alongside a bespoke pocket.
