100S Operable Wall

100S Operable Wall

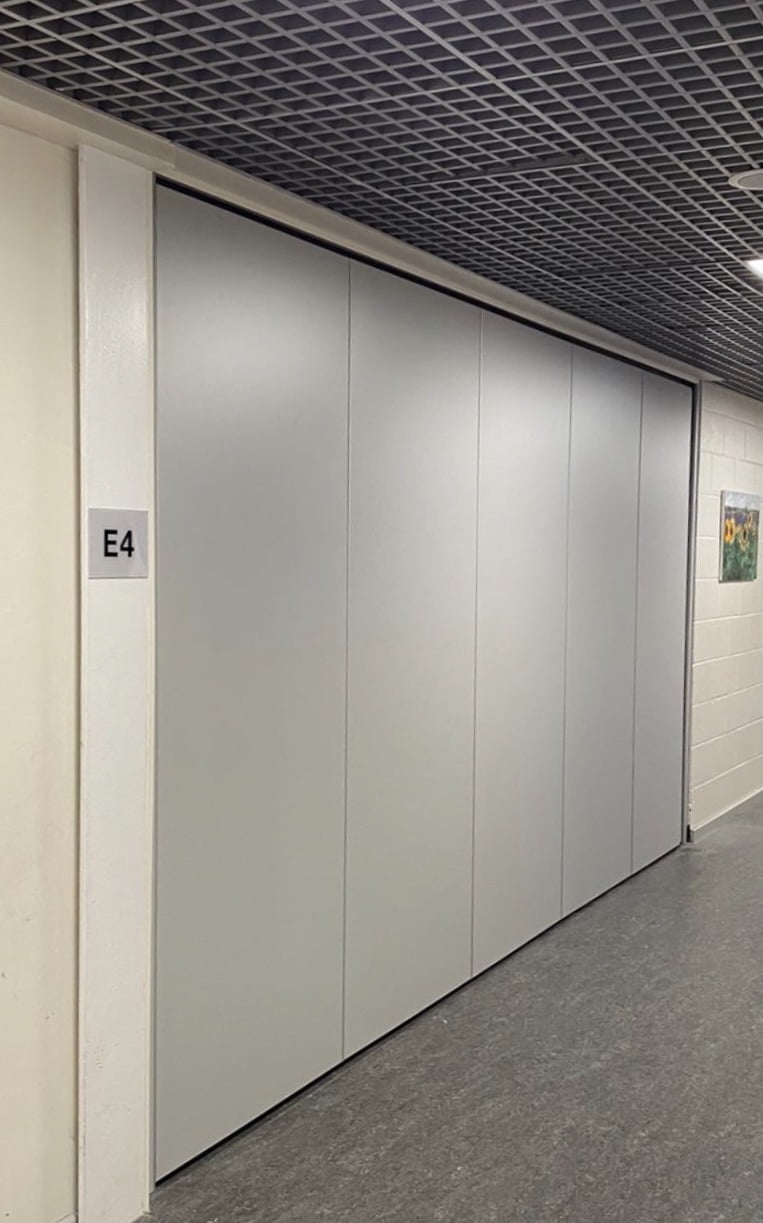

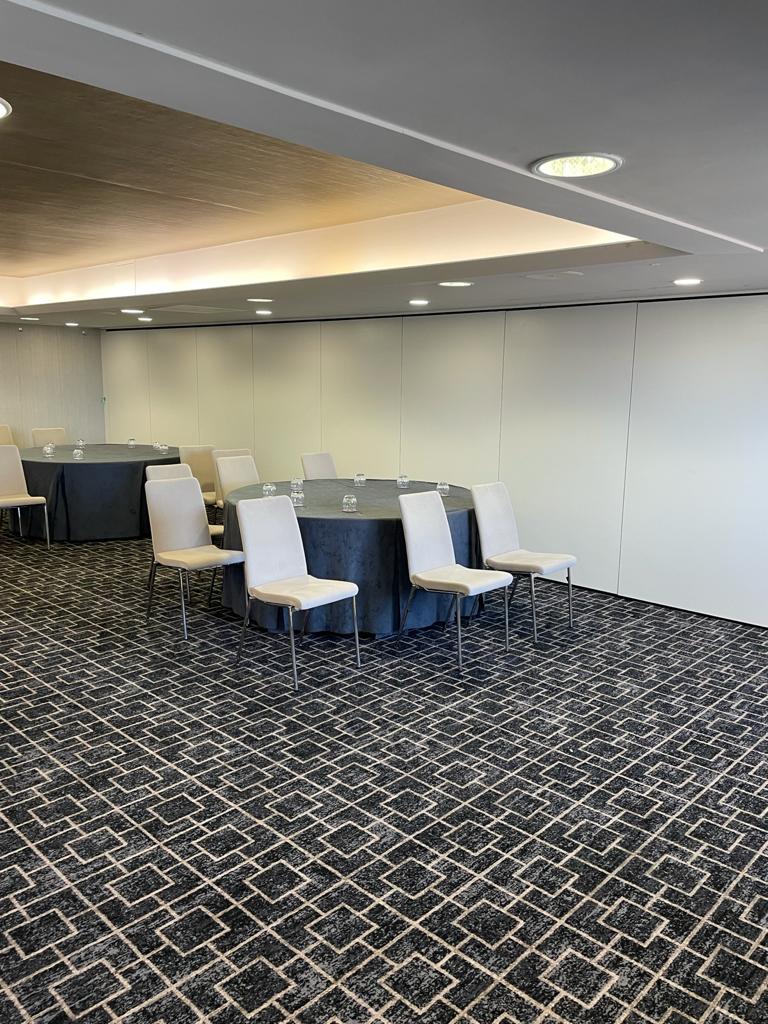

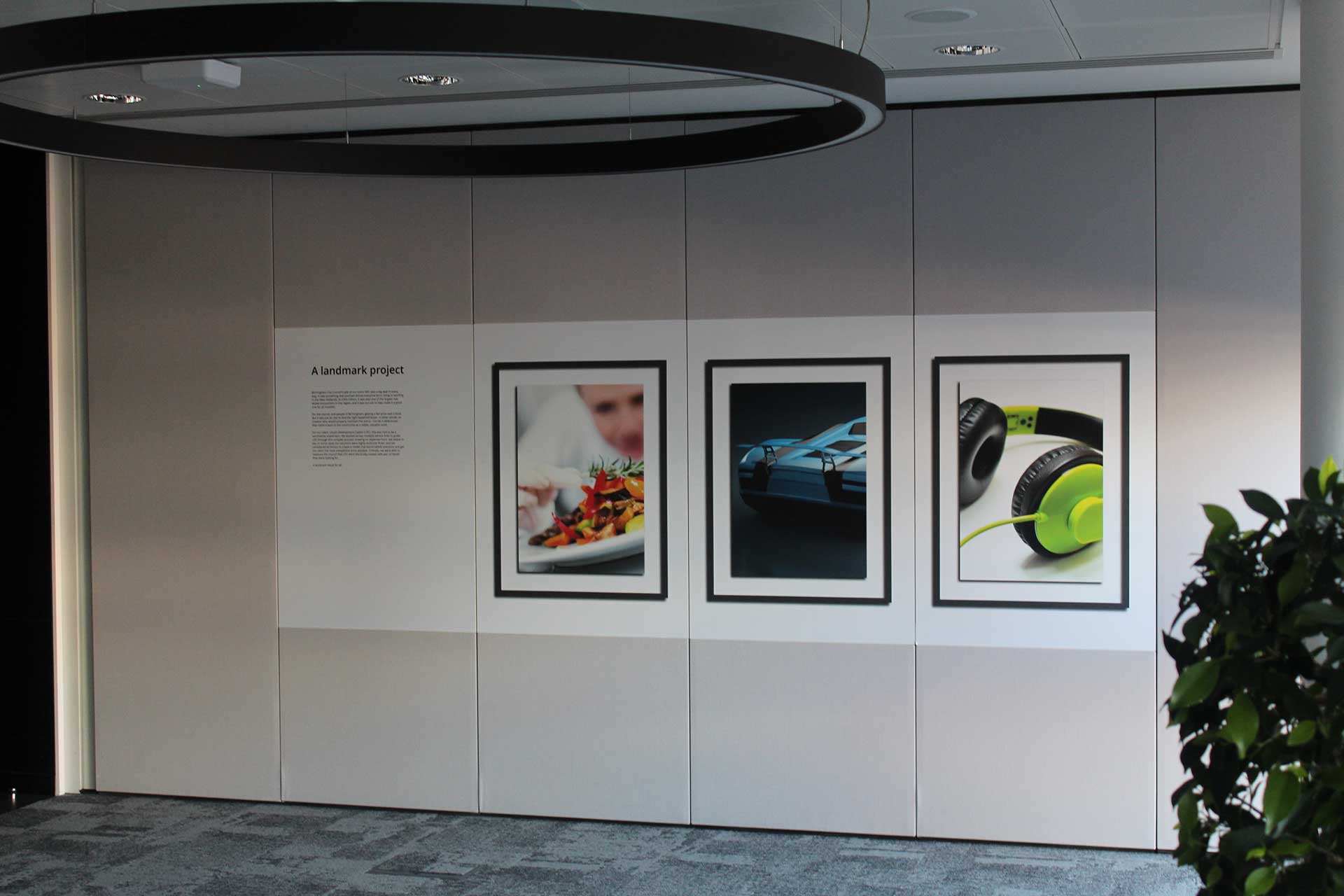

Our 100 series operable wall system is designed for easy, efficient and reliable daily use.

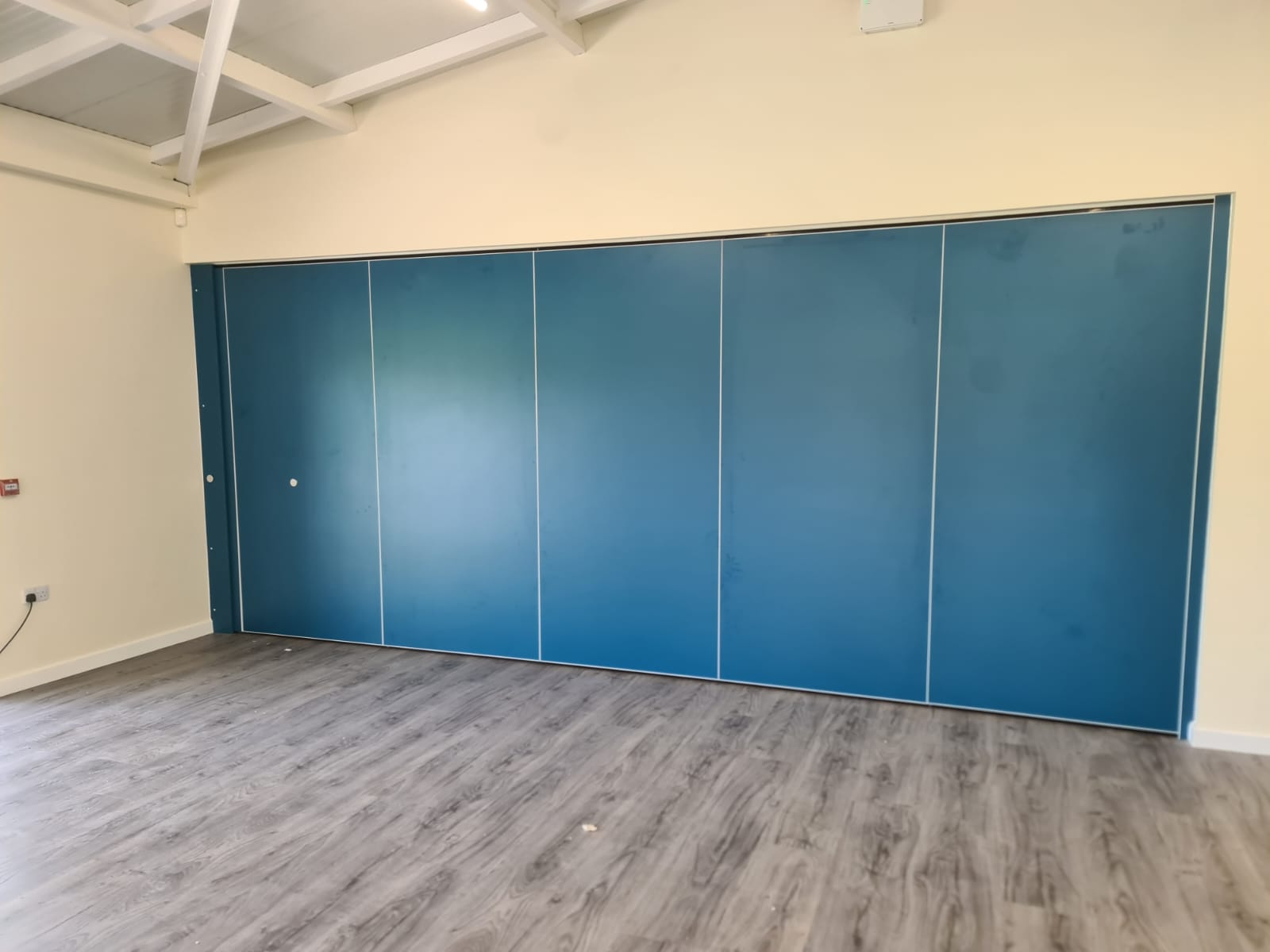

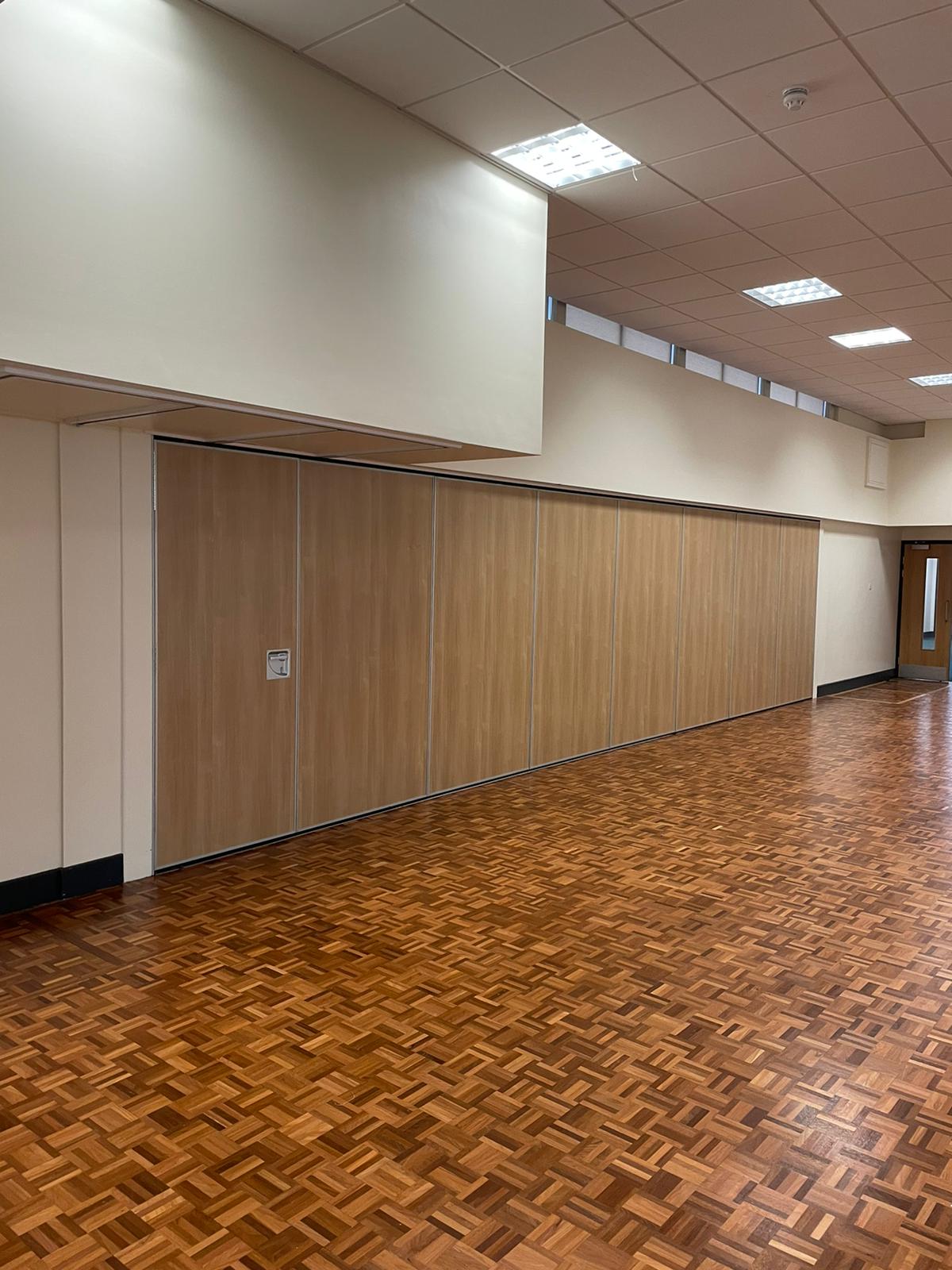

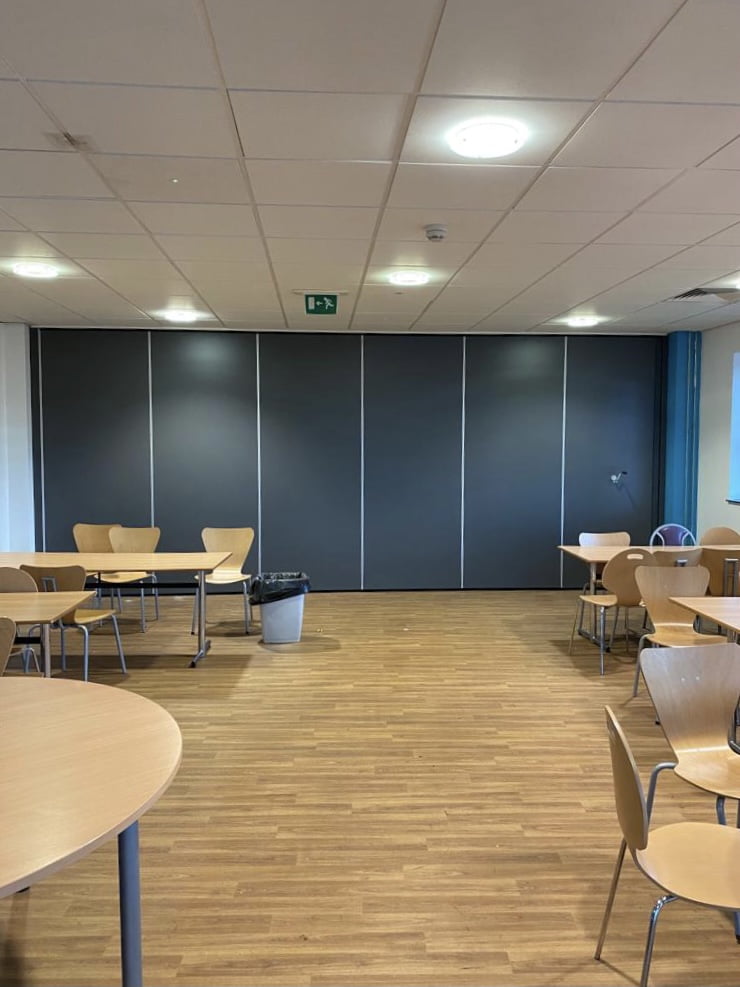

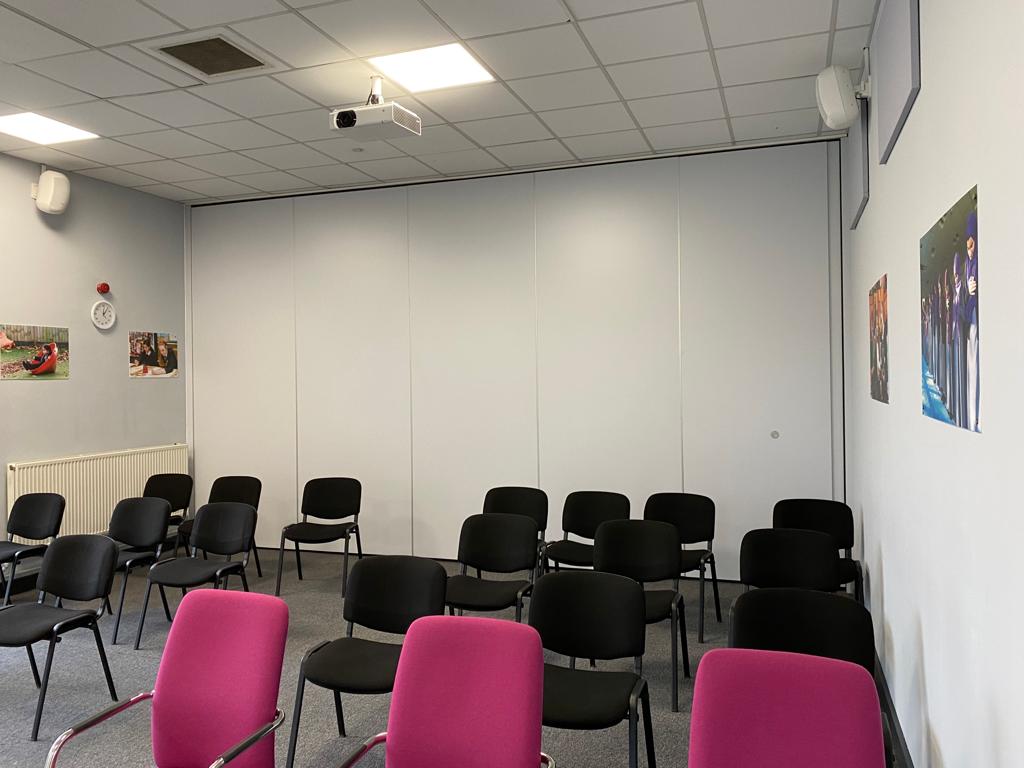

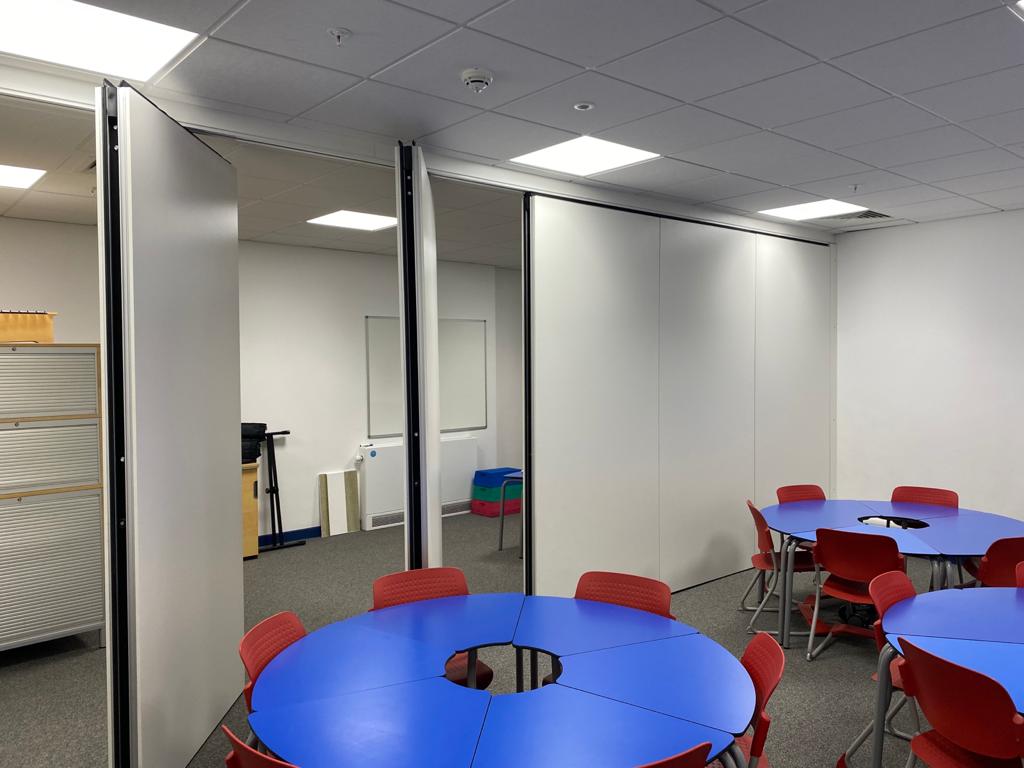

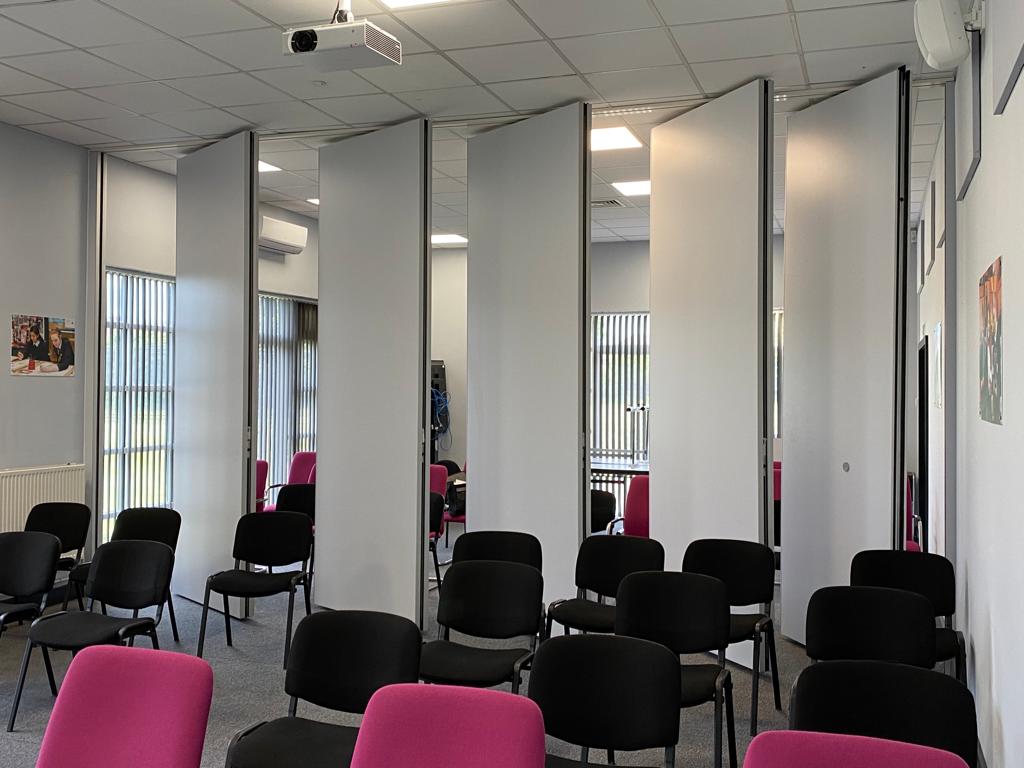

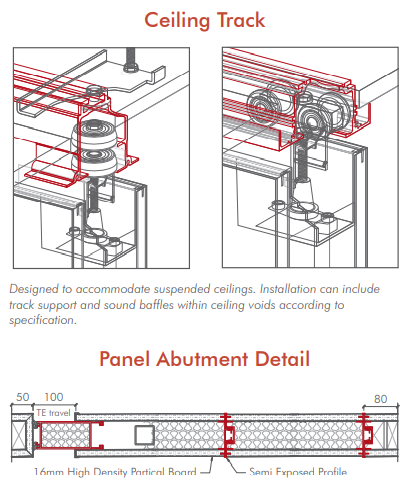

Interlocking individual panels, carried on rollers running in a top track only, push together with an expanding telescopic panel as the last element, to form a complete, secure partition wall.

These panels have independent operating pressure seal carriers extending at top and bottom.

100S Operable Wall


  • Top hung without any need for floor track
  • Retractable acoustic seals at top and bottom

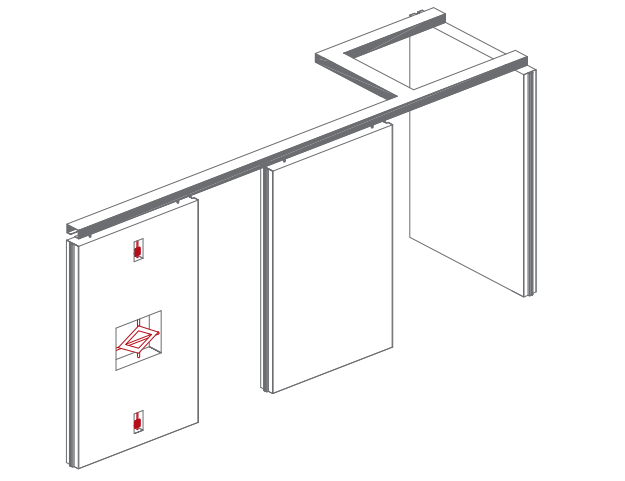

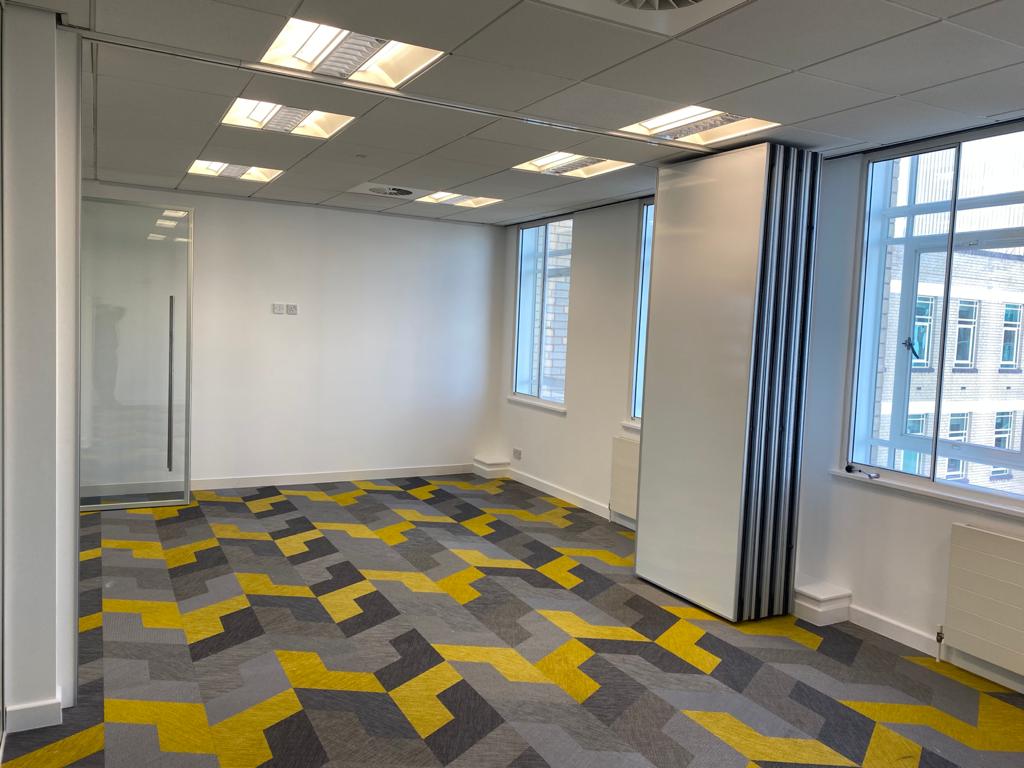

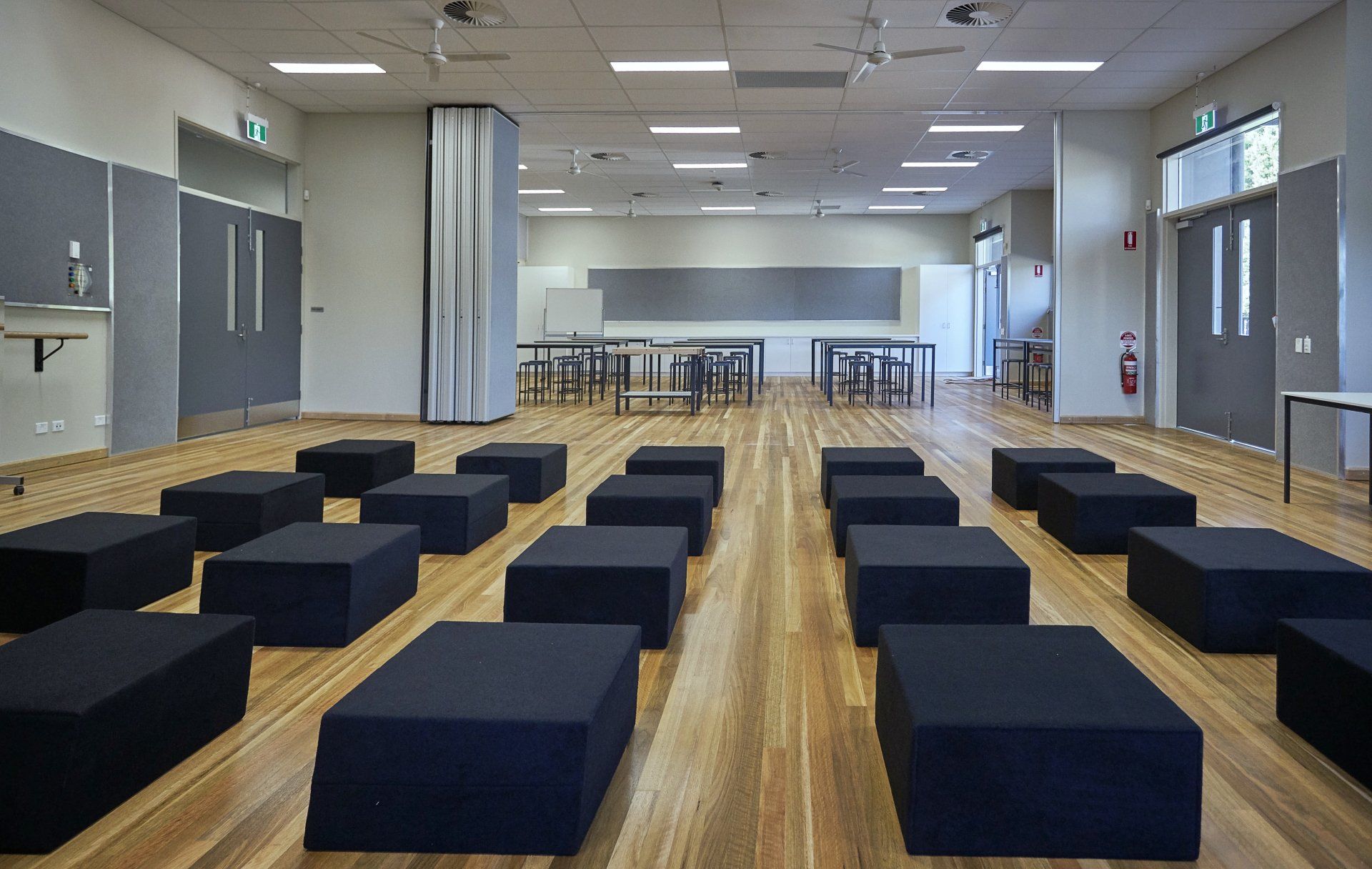

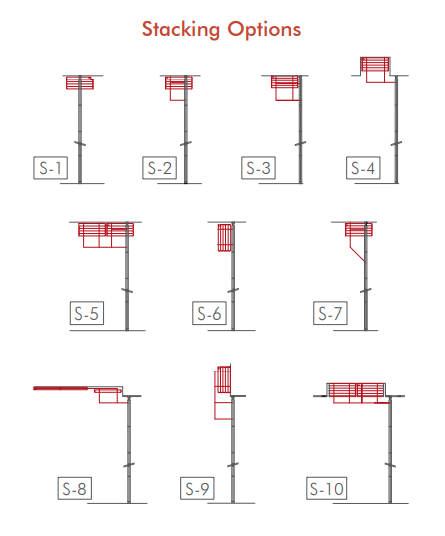

  • Single or twin point suspension for centre or remote stacking options
  • Variety of track arrangements

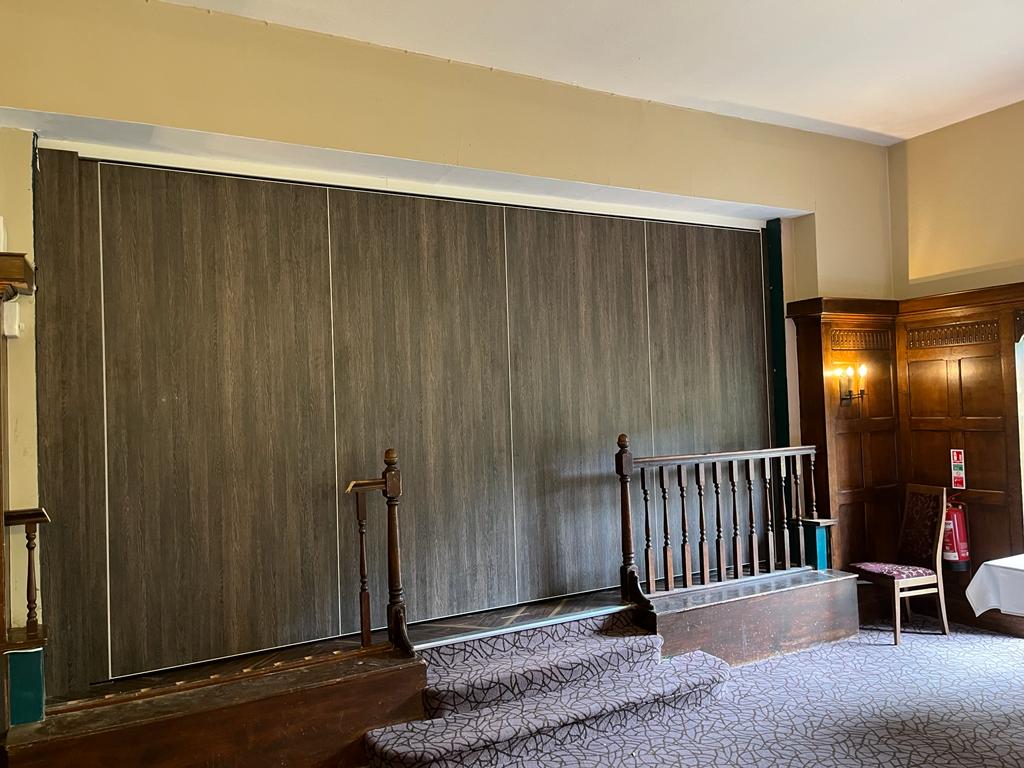

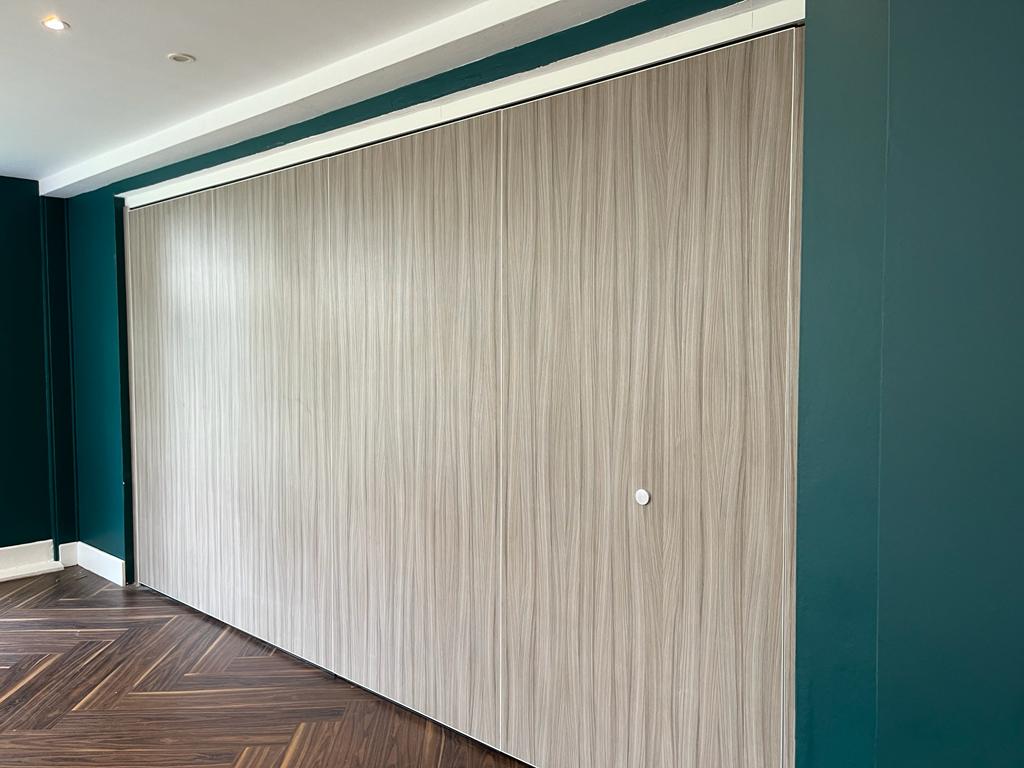

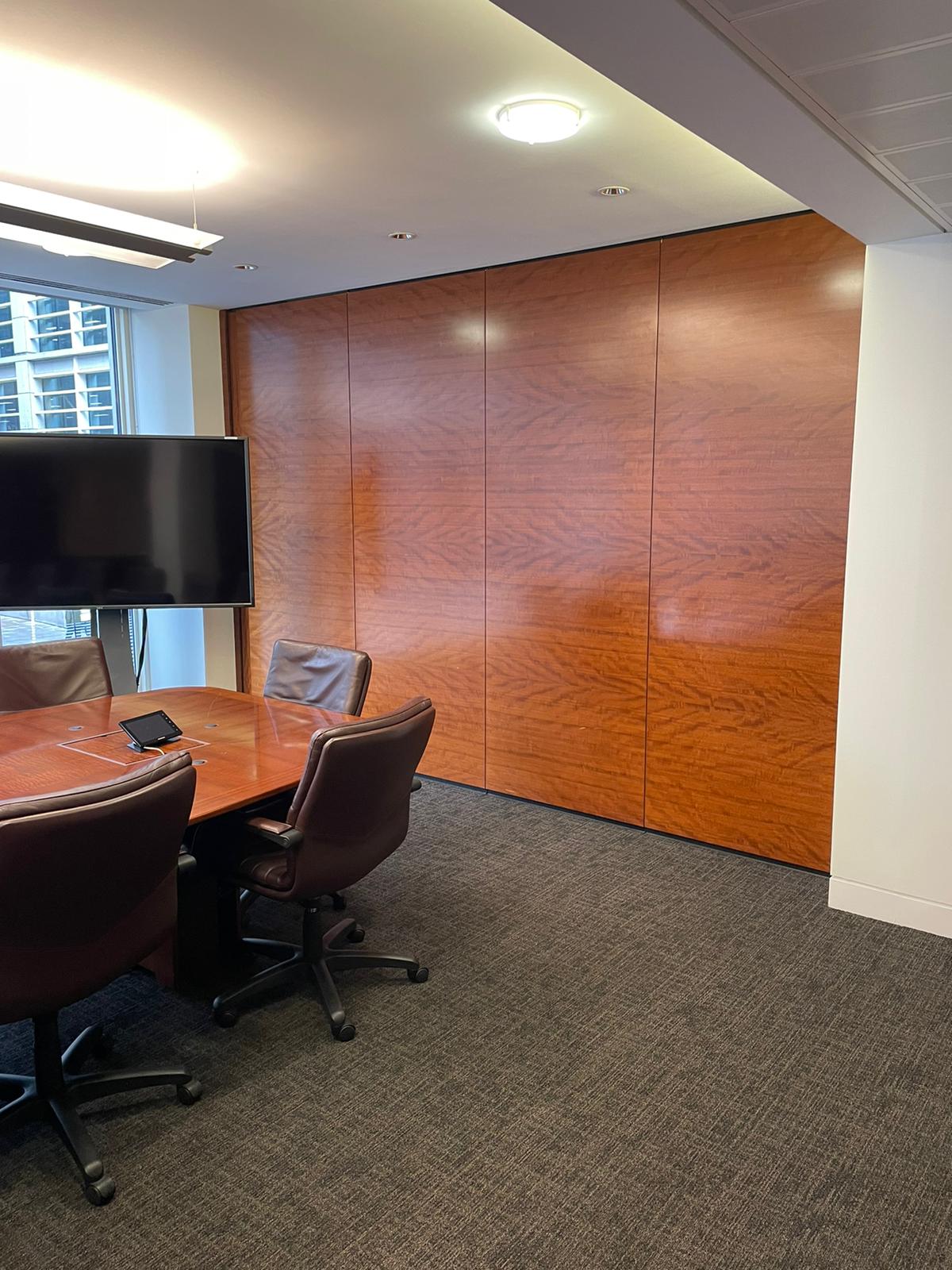

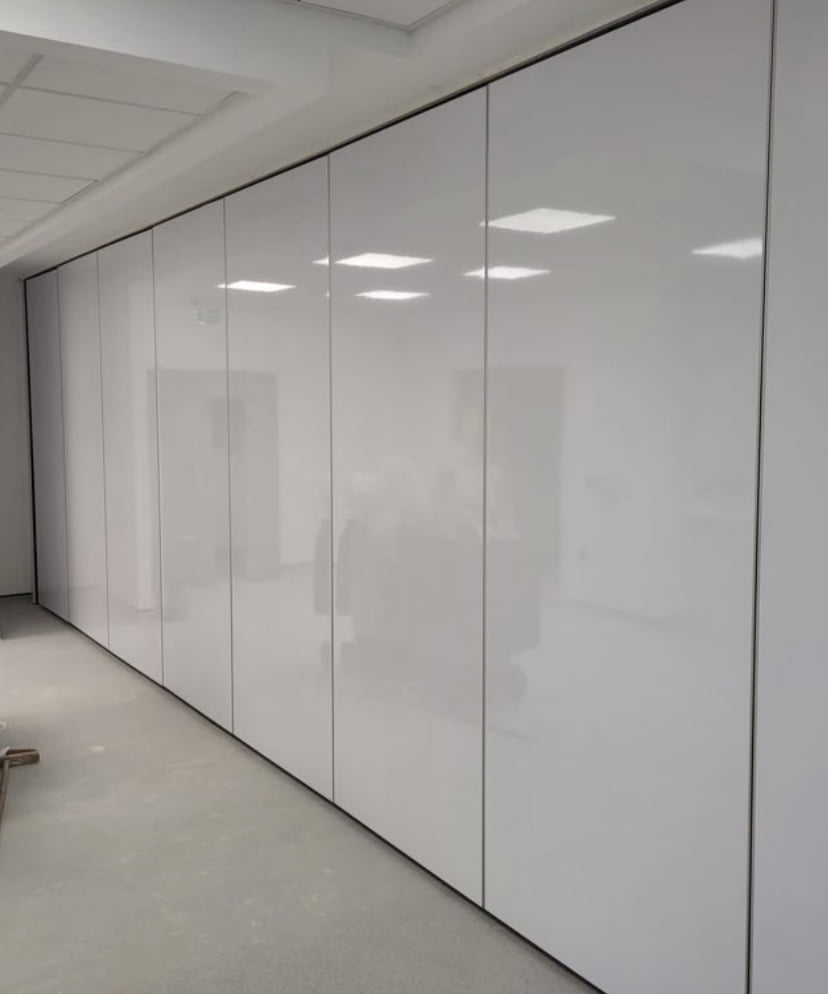

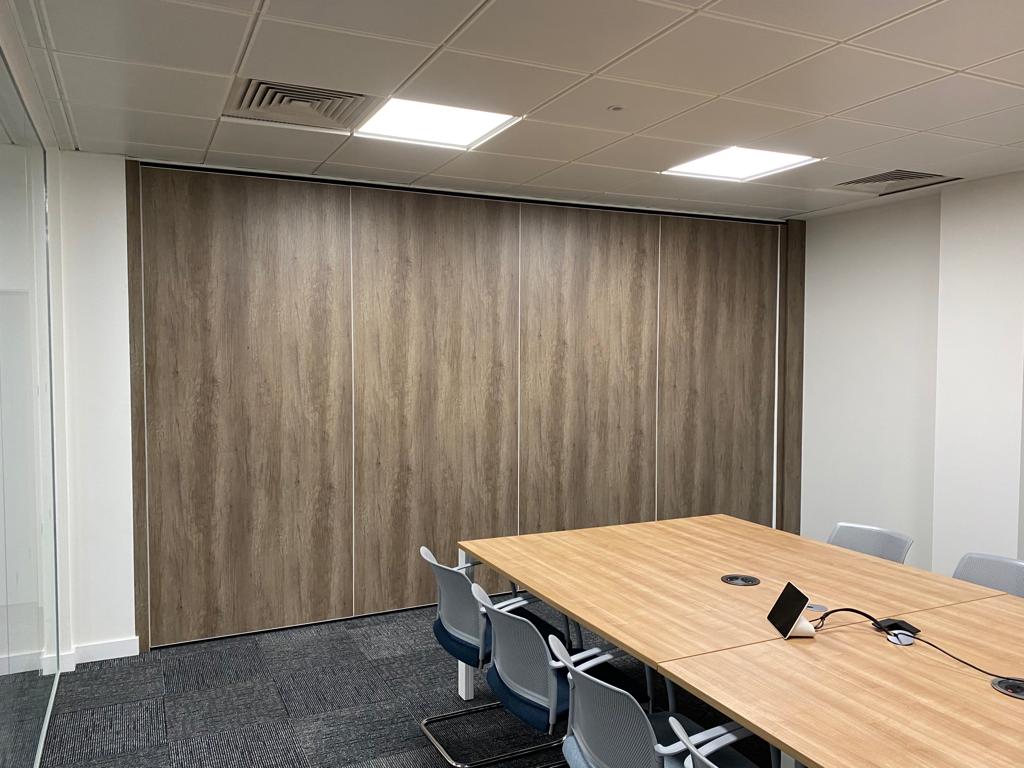

  • Variety of panel finishes including vinyl, veneer, melamine laminate,carpet, magnetic dry wipe etc

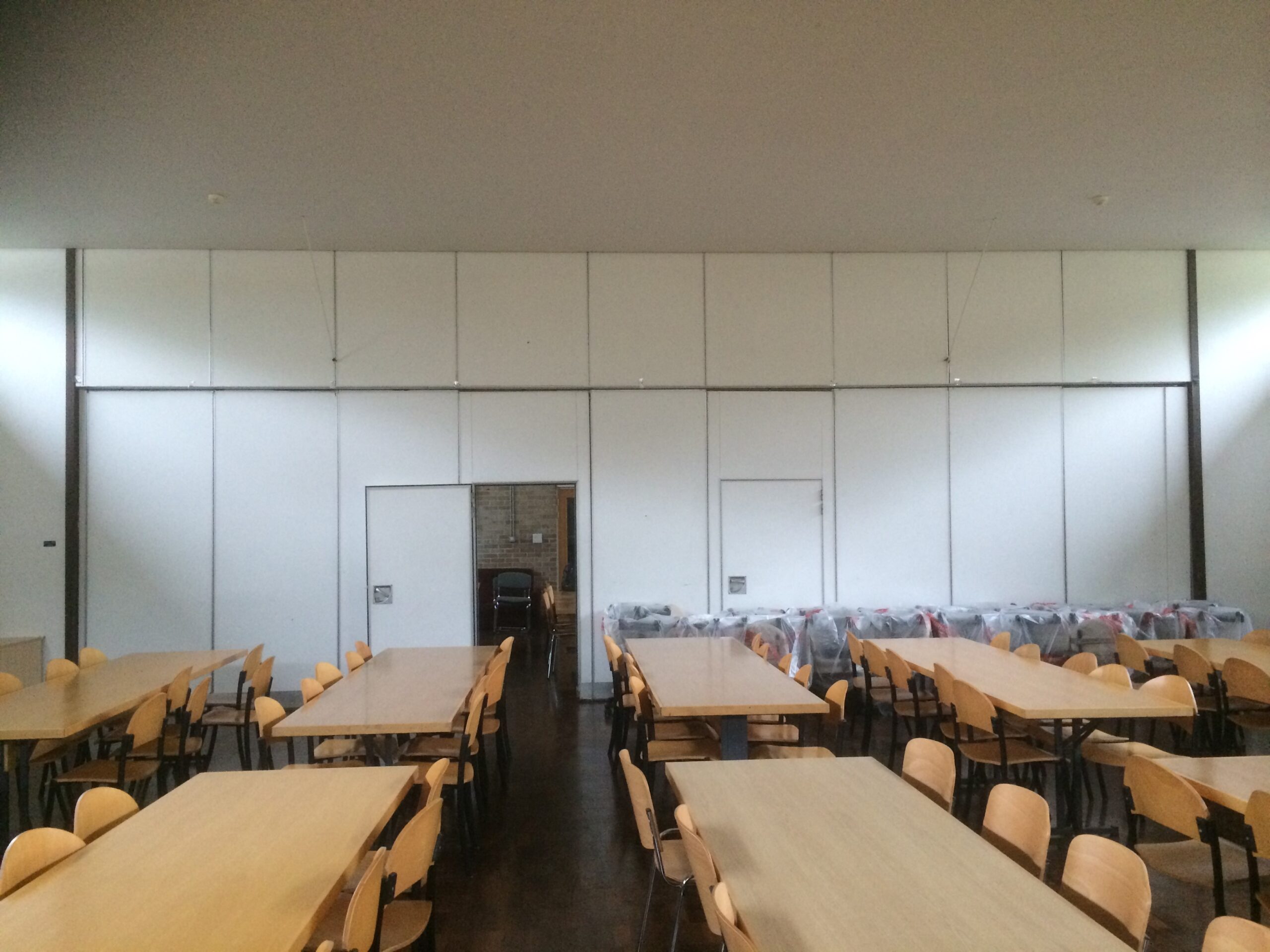

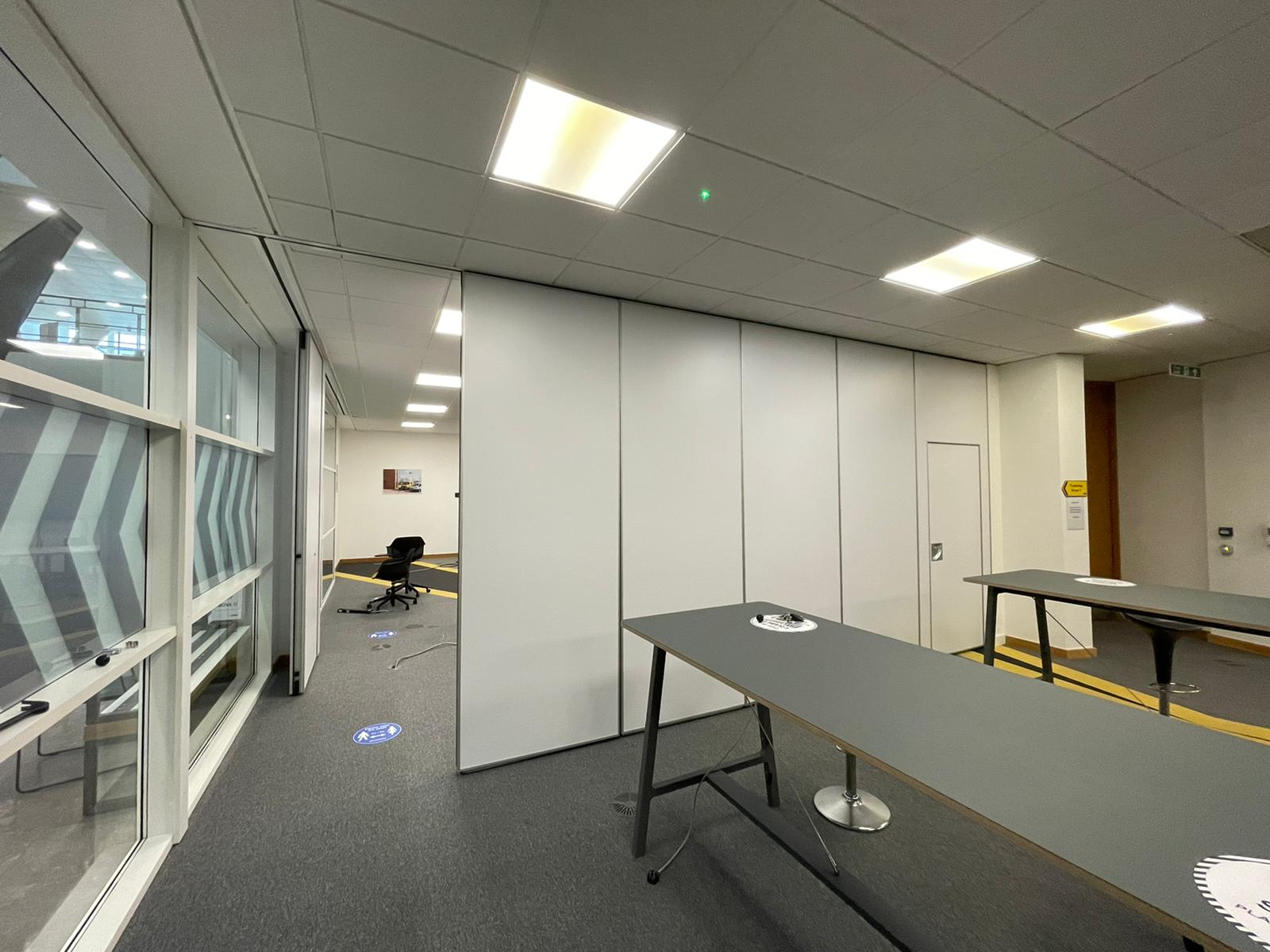

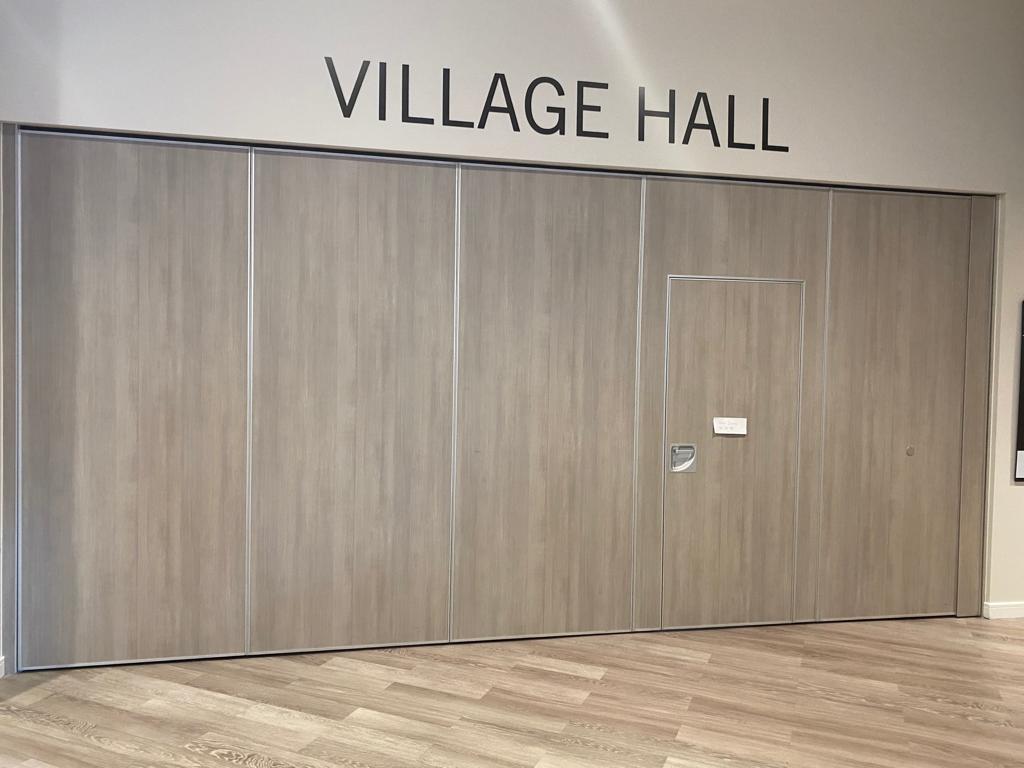

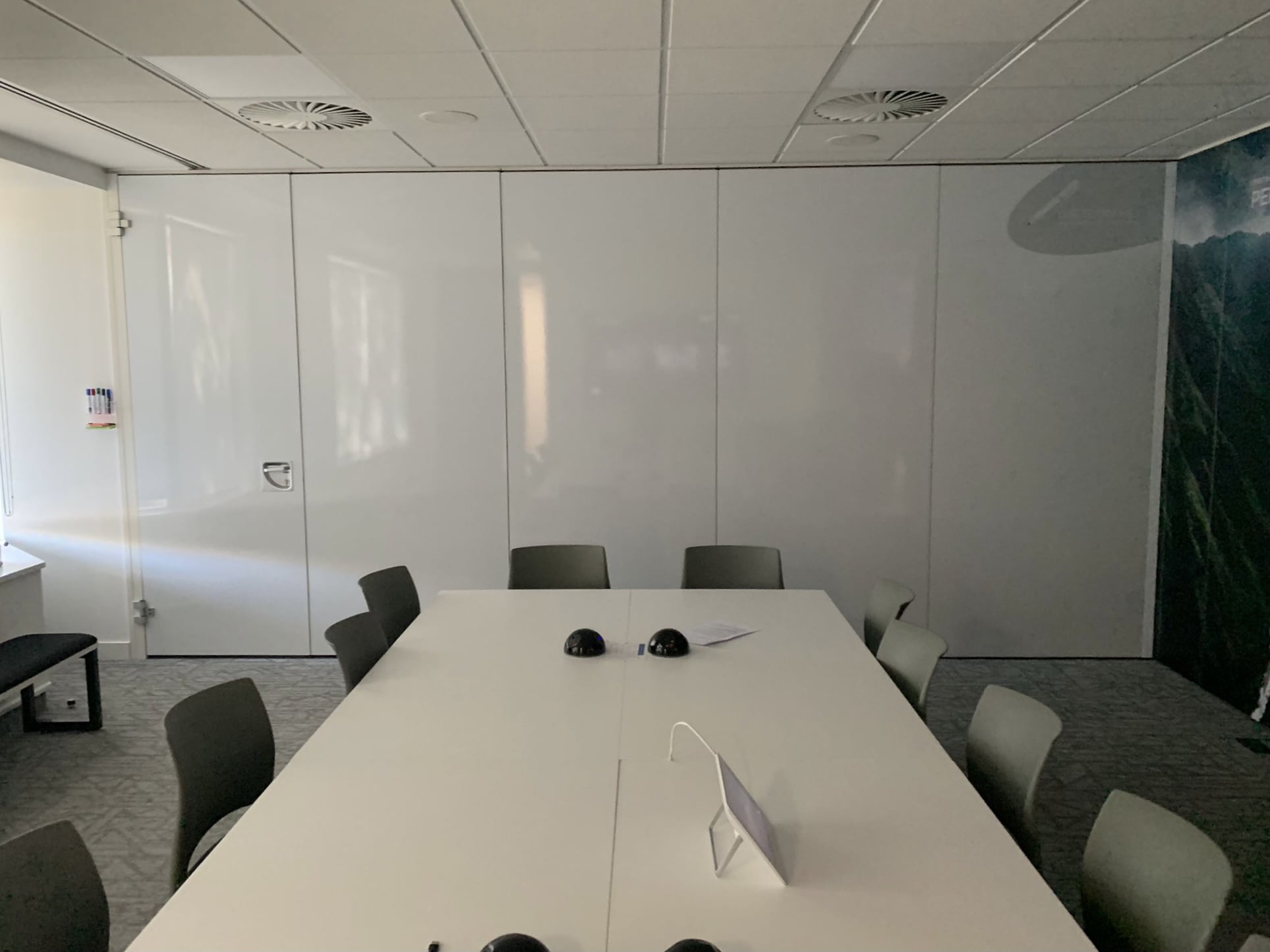

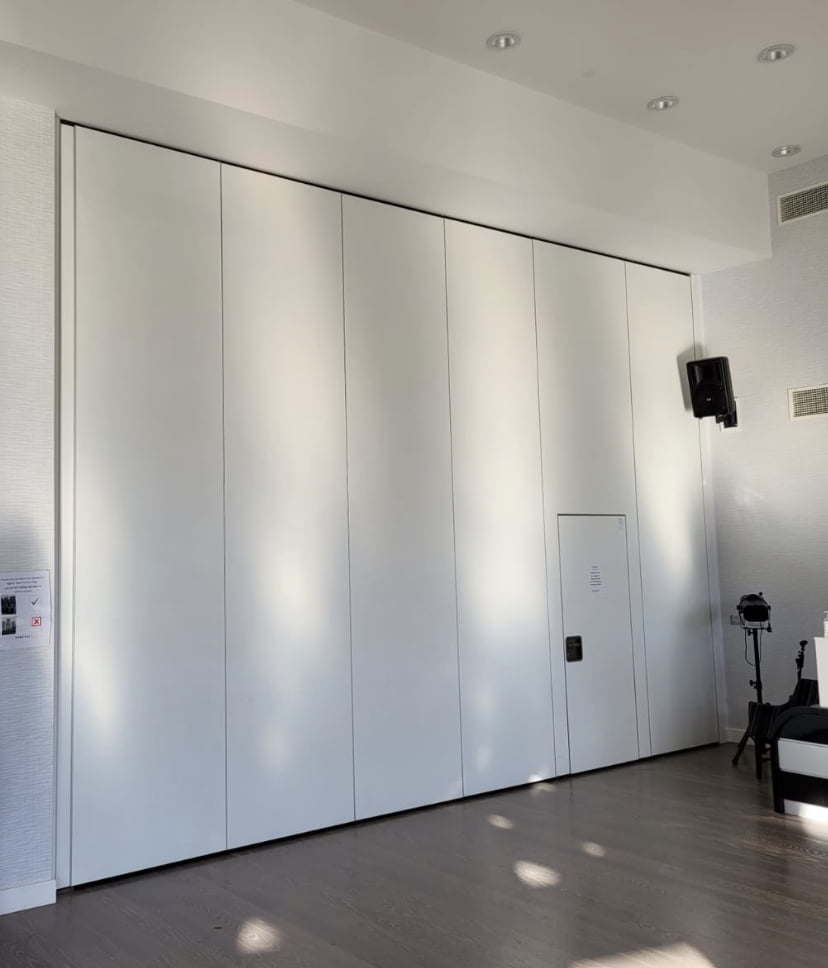

  • Optional inset door panels, glazed modules or vision panels.

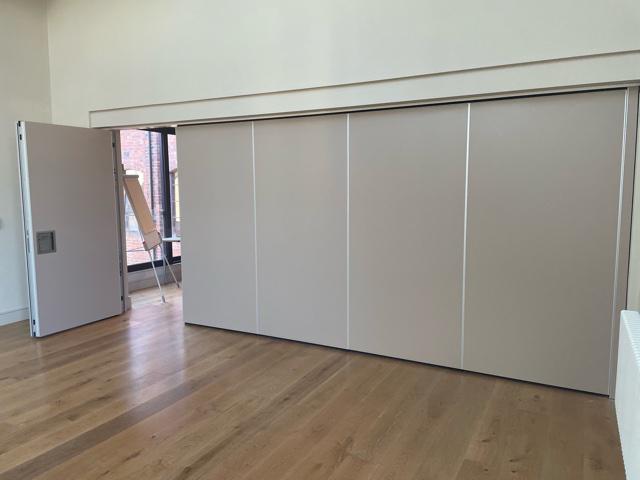

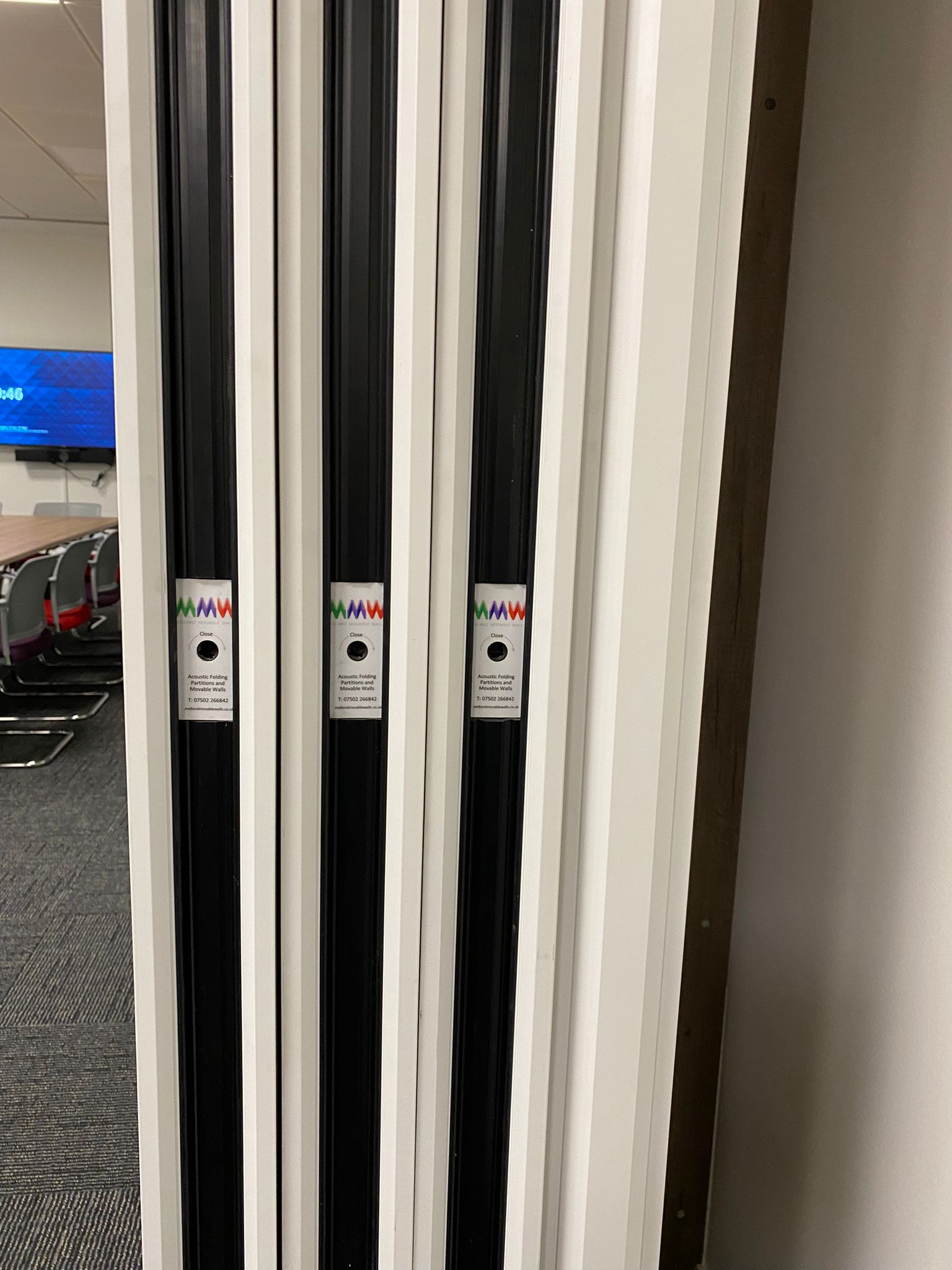

  • Telescopic panel as final module to close off and provide solid wall .


  • Sound resistance: Up to 53Rw(dB) depending on construction
  • Panel thickness: 85mm, 100mm or 110mm
  • Panel width: 600mm to 1200mm

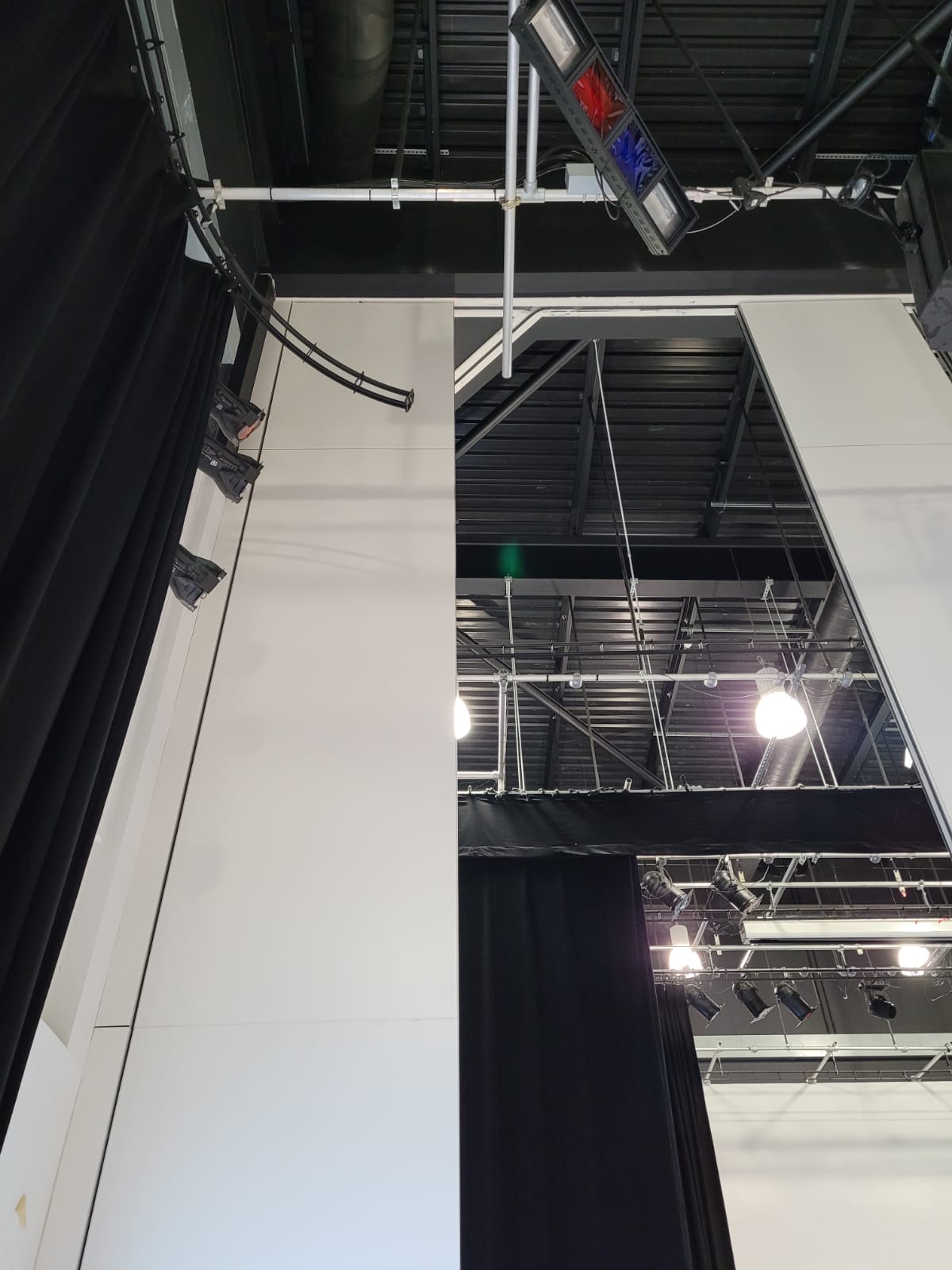

  • Wall heights: Up to 10,000mm as standard
